Click one of the buttons above to jump to your desired section, or scroll down to find post-cure settings for your resin and printer.
Compatible Printers
SprintRay Pro
(405 nm)
MoonRay® S100/D75
(405 nm)
Compatible Resins

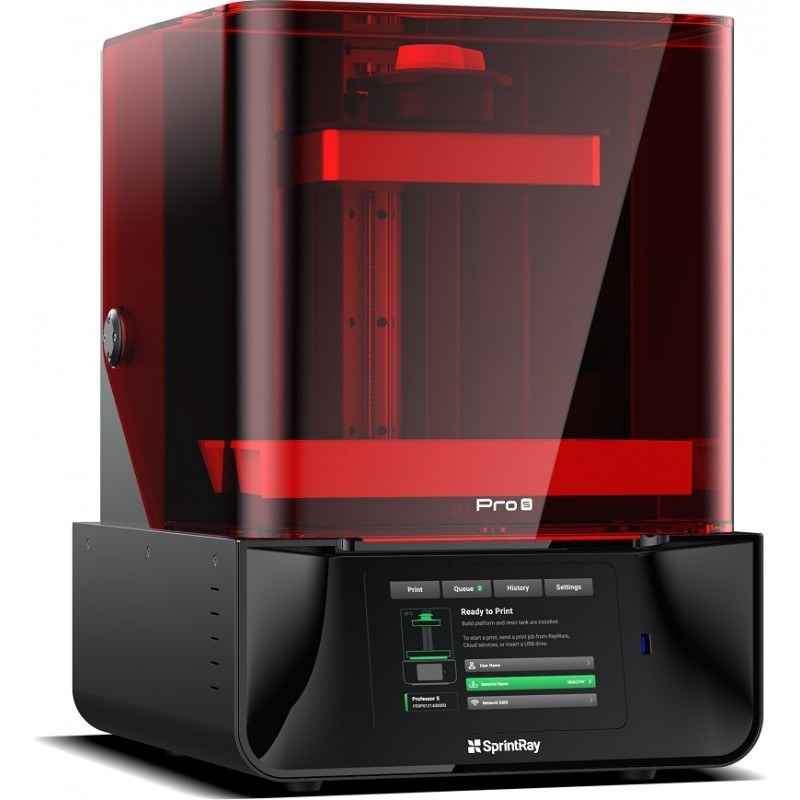

SprintRay Pro 95s
(405 + 385 nm)
Compatible Resins
Printer Settings
Printer settings are pre-loaded to each SprintRay printing system. Visit sprintray.com for more info.
Compatible Cure Boxes
Compatible Resins
KeyDenture Try-In – 30 minutes total at 50C
KeyModel Ultra – 30 minutes total at 50C
KeyModel – 15 minutes total at 50C
KeyOrthoModel – 15 minutes total at 50C
KeyCast – 30 minutes total at 50C
KeyMask – 15 minutes total at 50C
KeyGuide – 45 minutes total at 50C (Sprintray Pro only)
KeyTray – 15 minutes total at 50C
KeySplint Soft Tinted & Clear – 30 minutes total at 50C
KeySplint Hard Tinted – 20 minutes total at 50C
KeySplint Hard Clear – 15 minutes total at 50C
KeyOrtho IBT – 10 minutes total at 50C
Compatible Resins
KeyDenture Try-In – Zone A: 3:37, Center: 2:42, Zone A+B: 4:55
KeySplint Soft Tinted and Clear – Zone A: 3:37, Center: 2:42, Zone A+B: 4:55
KeySplint Hard Clear – Zone A: 1:50 , Center: 1:22, Zone A+B: 2:29
Zone A: 1 Min 30 Sec ( SprintRay Pro 95s & SprintRay Pro 2)
KeySplint Hard Tinted – Zone A: 3:37
KeyGuide – Zone A: 1:50, Center: 1:22, Zone A+B: 2:29
KeyTray – Zone A: 7:12, Center: 5:22, Zone A+B: 9:47
KeyMask – Zone A: 7:12, Center: 5:22, Zone A+B: 9:47
KeyCast – Zone A: 3:36, Center: 2:42, Zone A+B: 4:55
KeyOrtho IBT – Zone A: 3:37, Center: 2:42, Zone A+B: 4:55
Compatible Resins
KeyDenture Try-In – 2000 flashes per side
KeyModel Ultra – 2000 flashes per side
KeyModel – 4000 flashes per side
KeyOrthoModel – 4000 flashes per side
KeyCast – 2000 flashes per side
KeyMask – 4000 flashes per side
KeyGuide – 2000 flashes per side
KeyTray – 2000 flashes per side
KeySplint Soft Tinted and Clear – 2000 flashes per side
KeySplint Hard Tinted and Clear – 2000 flashes per side
KeyOrtho IBT – 1000 flashes per side
KeyCast – 2000 flashes per side
Compatible Resins
KeySplint Soft Tinted & Clear – 1 minute cure with heat ( 2 minutes total time; Pro 2 printer only)
KeyCast – 33 sec UV cycle with 30 sec preheat
KeySplint Hard Clear – 1 Min 30 Sec
Compatible Resins
KeyModel Ultra (Sand) – 3 minutes at 100% intensity per side
KeySplint Hard Clear – 5 minutes at 80% intensity per side
Compatible Resins
2 minutes at 100% intensity per sidKeyModel Ultra – 2 minutes per side
KeyModel – 2 minutes per side
KeyOrthoModel – 2 minutes per side
KeyCast – 2 minutes per side
KeyMask – 2 minutes per side
KeySplint Hard Tinted – 2 minutes per side
KeyOrtho IBT – 1 minute per side
KeyDenture Base – 3 minutes at 100% intensity per side
KeyModel Ultra (Sand) – 3 minutes at 100% intensity per side
KeySplint Hard Clear – 2 minutes at 100% intensity per side
Notes
- Validations are done at 100% intensity unless otherwise noted
- For Uvitron 600W, same post cure settings apply at 66% intensity
- Validations are done at the lowest rack
